Düchting Pump, Sectional Cut Model

Düchting Pump, Sectional Cut Model – 1:1 scale model by TNBuilt West
1:1Scale
2024Year
Düchting Pumpen Maschinenfabrik GmbH & Co. KG (Germany)Client

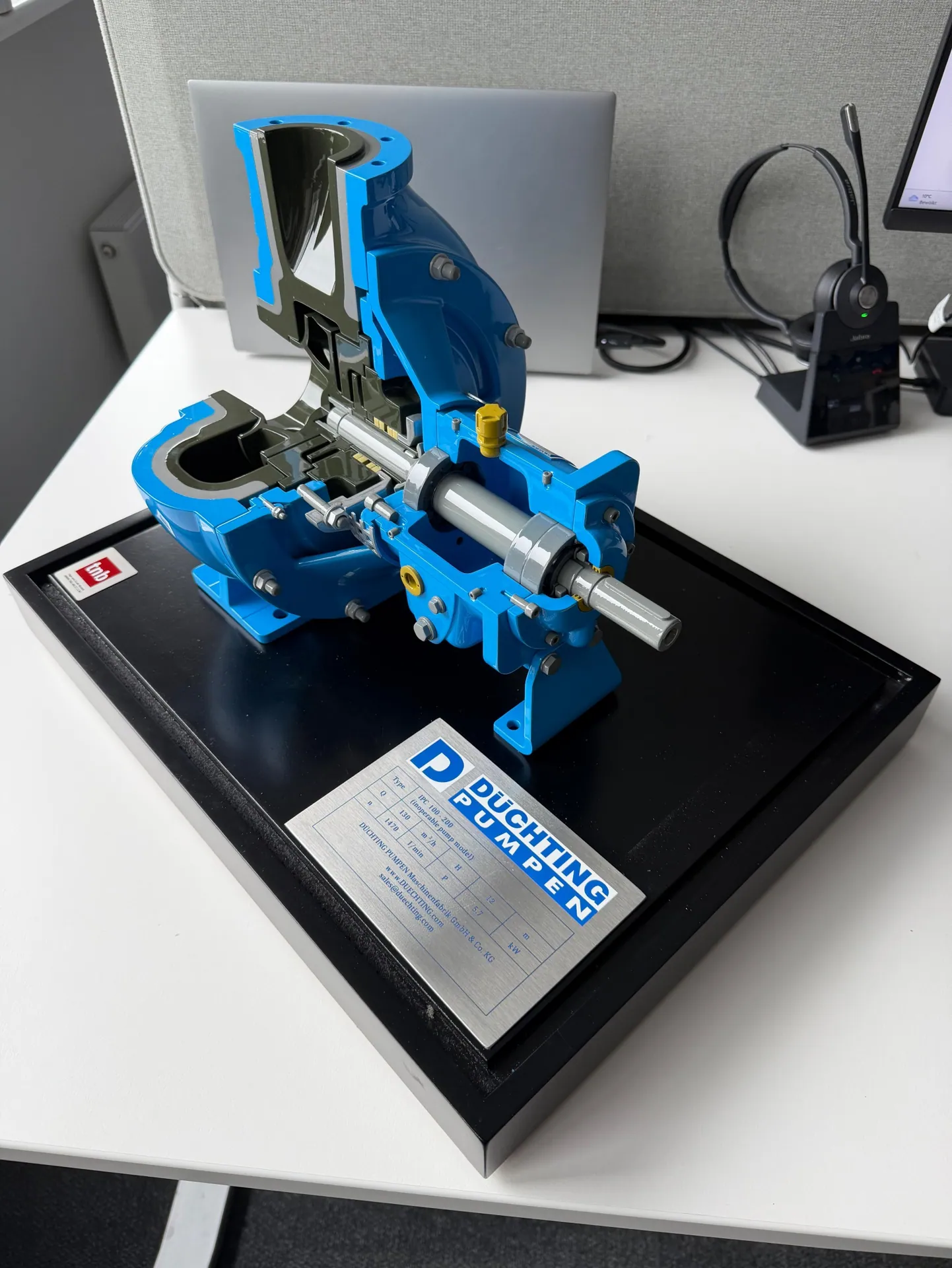

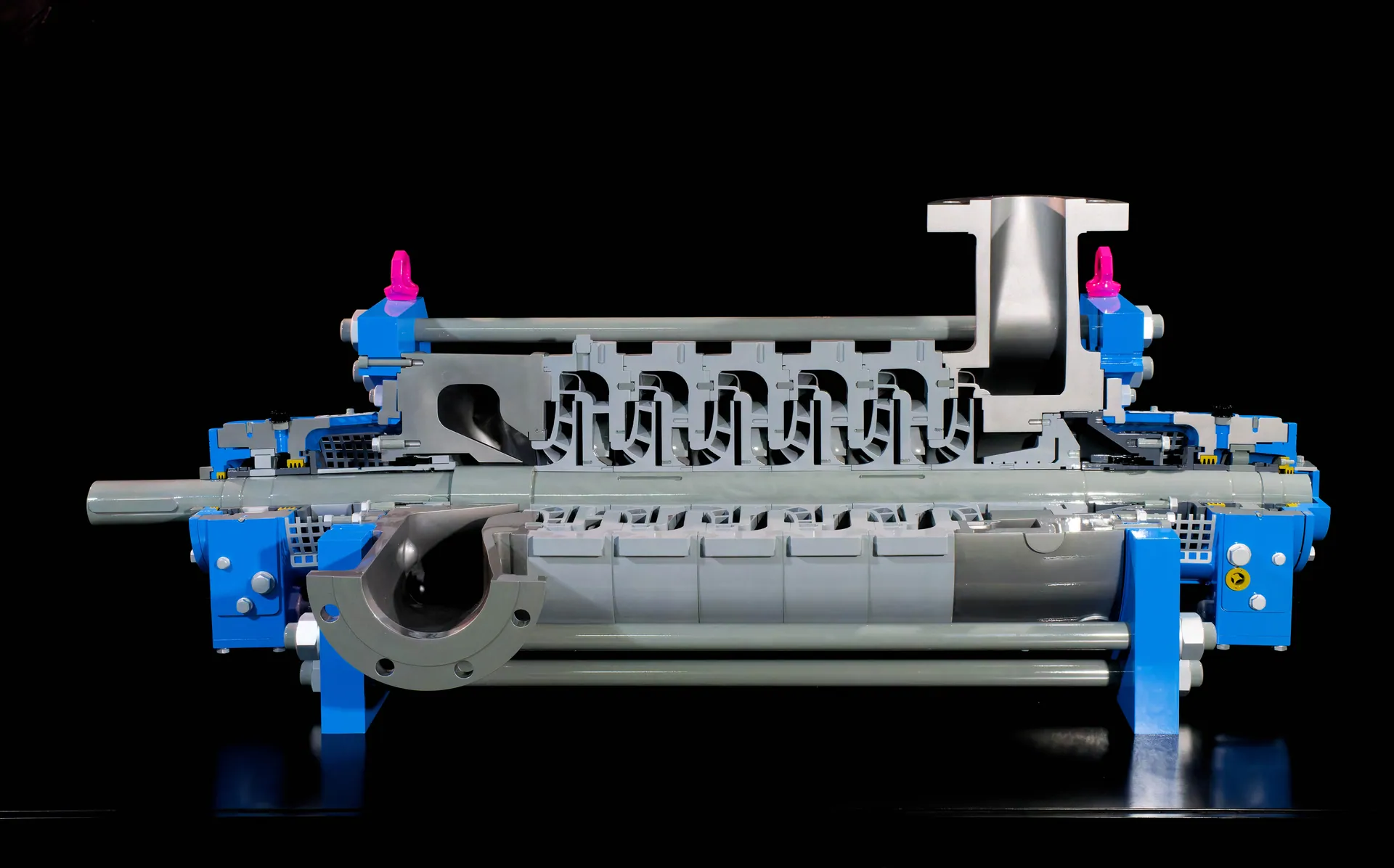

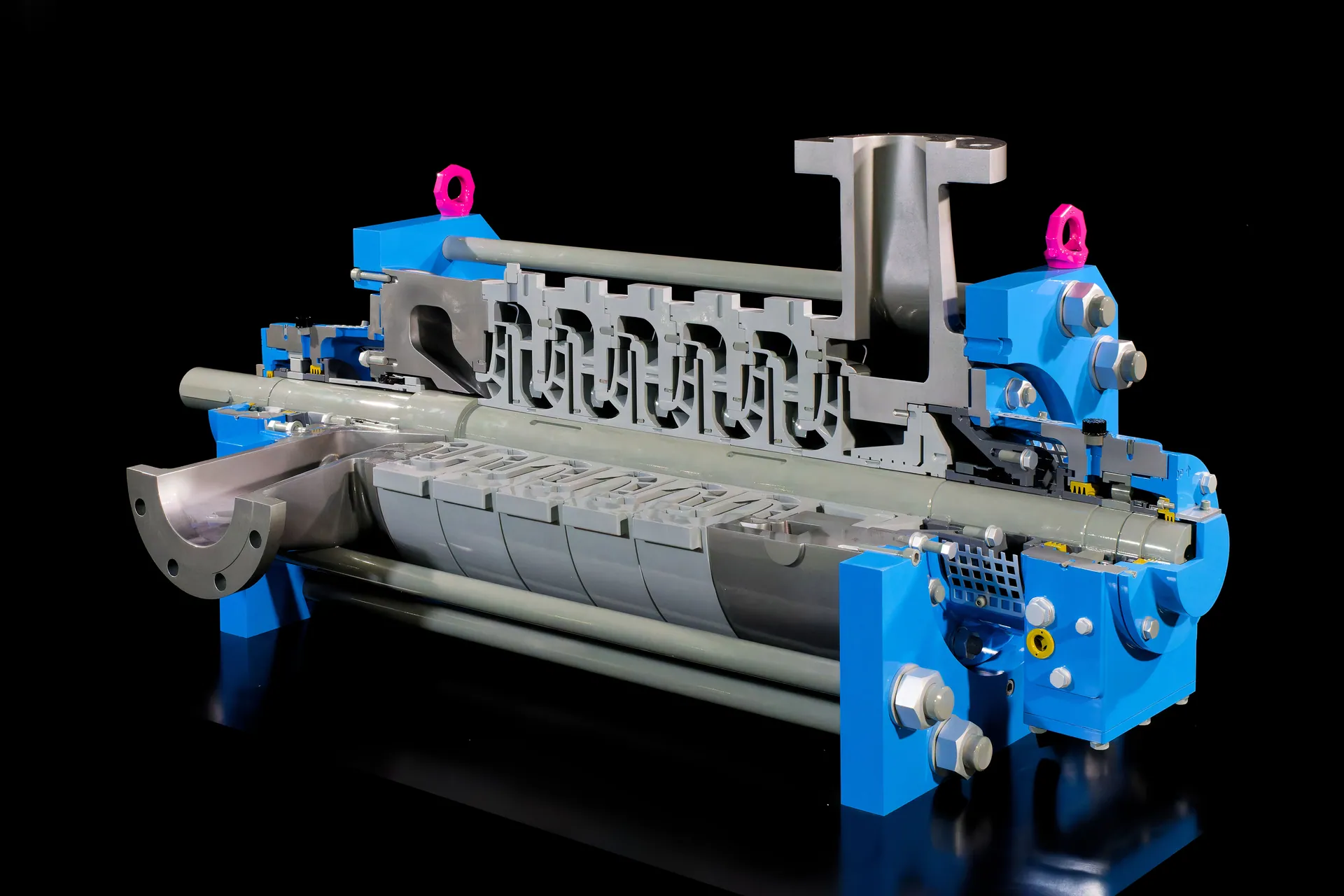

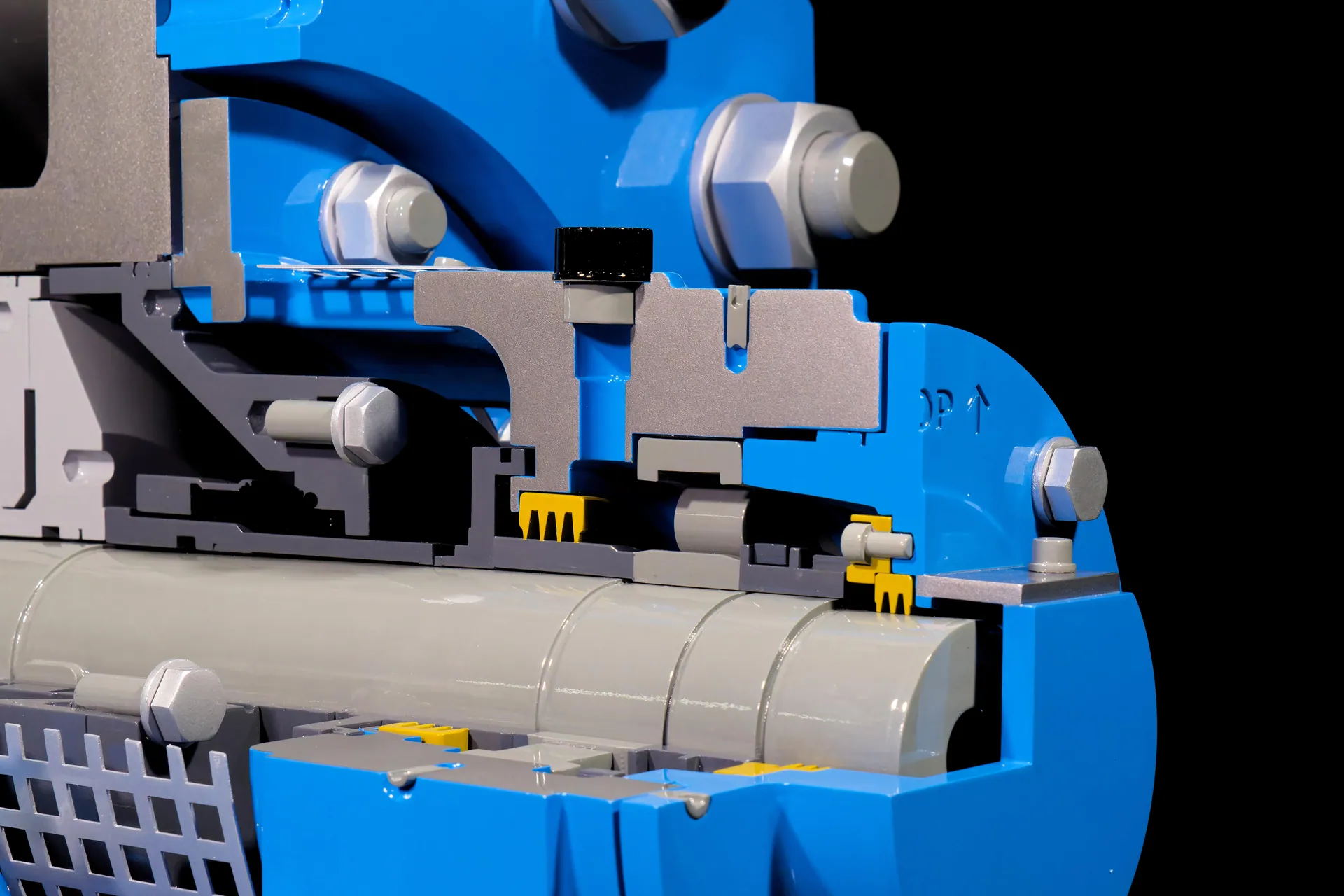

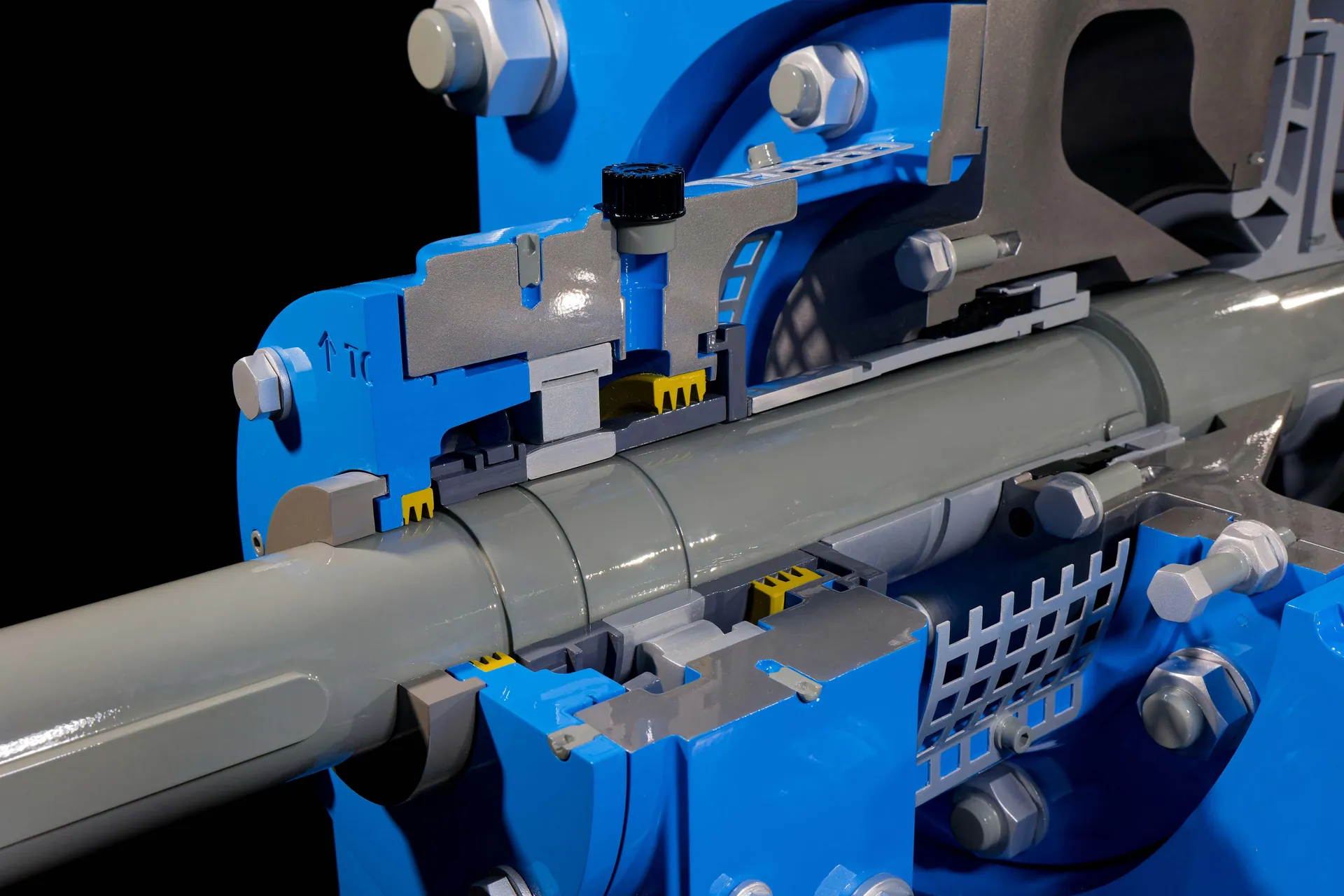

A 1:1 sectional model of a Düchting multistage pump that reveals the impellers, volute casing, shaft, bearings and mechanical seals working together to move fluids.

Color coding separates rotating and static parts, turning a complex machine into a clear sales and training tool.
